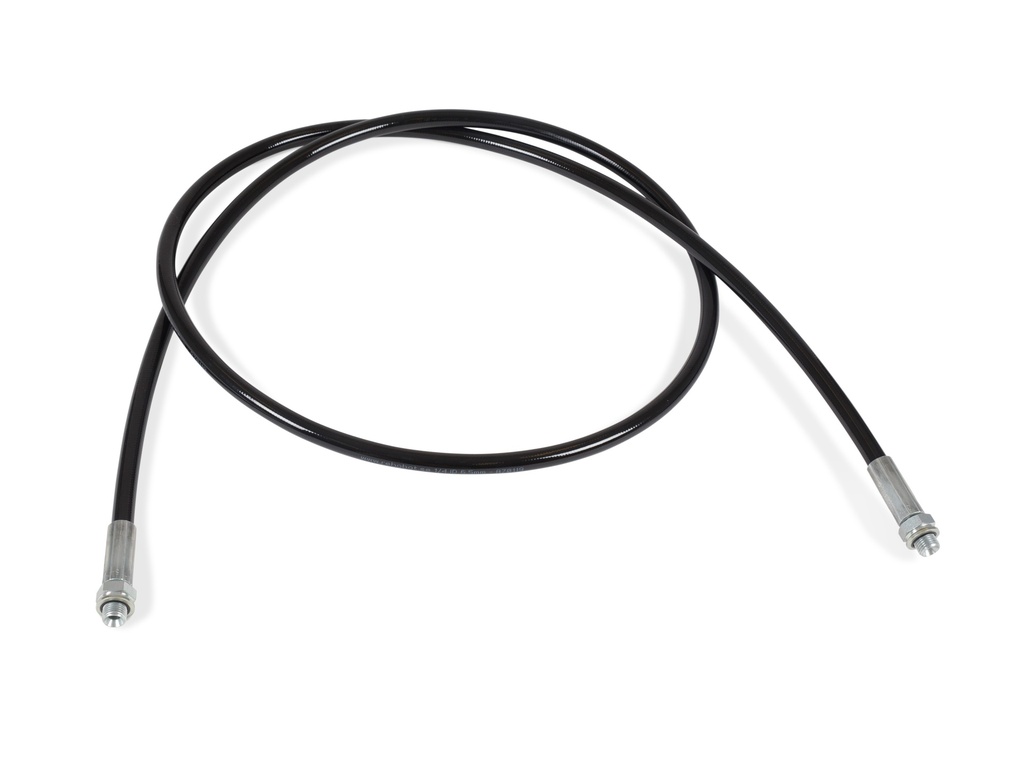

LS201ES - Hydraulic hoses

LS201ES - Hydraulic hoses

122,50 € 122.5 EUR 122,50 €

122,50 €

Deze combinatie bestaat niet.

Aan winkelmandje toevoegen

Rehobot

Algemene voorwaarden
30-dagen geld terug garantie
Verzending: 2-3 werkdagen

Metric Measurements

Name	Item code	Working pressure MPa	Burst pressure MPa	Int. ø mm	Out. ø mm	Connection thread	Length mm
LS51ES	26775	70	280	6,3	13,5	G 1/4" (ext.)	500
LS101ES	26776	70	280	6,3	13,5	G 1/4" (ext.)	1000
LS151ES	26777	70	280	6,3	13,5	G 1/4" (ext.)	1500
LS201ES	26778	70	280	6,3	13,5	G 1/4" (ext.)	2000
LS251ES	26779	70	280	6,3	13,5	G 1/4" (ext.)	2500
LS301ES	26780	70	280	6,3	13,5	G 1/4" (ext.)	3000
LS401ES	26781	70	280	6,3	13,5	G 1/4" (ext.)	4000
LS501ES	26782	70	280	6,3	13,5	G 1/4" (ext.)	5000
LS1001ES	37438	70	280	6,3	13,5	G 1/4" (ext.)	10000
LSS103EB	47827	150	450	6,3	13,5	G 1/4" (ext.)	1000
LSS203EB	47828	150	450	6,3	13,5	G 1/4" (ext.)	2000
LSS303EB	35655	150	450	6,3	11,5	G 1/4" (ext.)	3000
LS204EB	45047	240	625	4,7	13	9/16" UNF (*)	2000
LS304EB	45045	240	625	4,7	13	9/16" UNF (*)	3000
LS205EB	51228	300	700	3,9	11,5	M16x1,5 (**)	2000

Imperial Measurements

Name	Item code	Working pressure psi	Burst pressure psi	Int. ø in	Out. ø in	Connection thread	Length in
LS51ES	26775	10000	40600	0.3	0.5	G 1/4" (ext.)	19
LS101ES	26776	10000	40600	0.3	0.5	G 1/4" (ext.)	39
LS151ES	26777	10000	40600	0.3	0.5	G 1/4" (ext.)	59
LS201ES	26778	10000	40600	0.3	0.5	G 1/4" (ext.)	78
LS251ES	26779	10000	40600	0.3	0.5	G 1/4" (ext.)	98
LS301ES	26780	10000	40600	0.3	0.5	G 1/4" (ext.)	118
LS401ES	26781	10000	40600	0.3	0.5	G 1/4" (ext.)	157
LS501ES	26782	10000	40600	0.3	0.5	G 1/4" (ext.)	196
LS1001ES	37438	10000	40600	0.3	0.5	G 1/4" (ext.)	393
LSS103EB	47827	21750	65200	0.3	0.5	G 1/4" (ext.)	39
LSS203EB	47828	21750	65200	0.3	0.5	G 1/4" (ext.)	78
LSS303EB	35655	21750	65200	0.3	0.5	G 1/4" (ext.)	118
LS204EB	45047	34800	90600	0.2	0.5	9/16" UNF (*)	78
LS304EB	45045	34800	90600	0.2	0.5	9/16" UNF (*)	118
LS205EB	51228	43500	101500	0.2	0.5	M16x1,5 (**)	78
