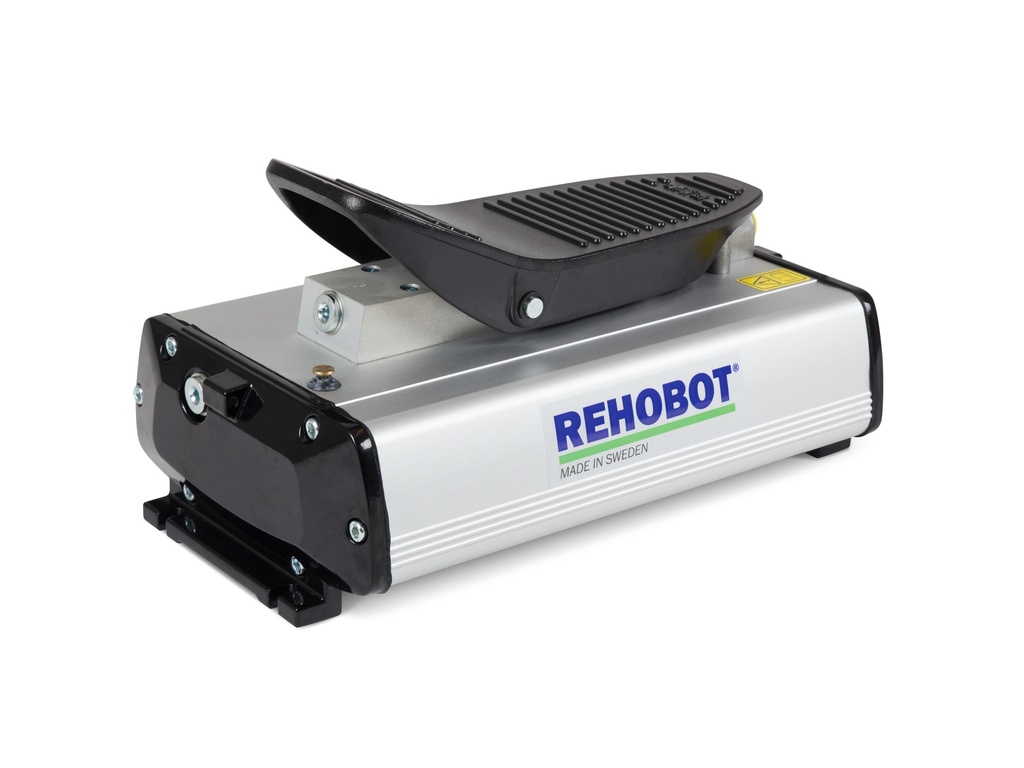

PP100-2500FP - Air pumps PPxx-2500
Metric Measurements
Name | Item code | Working press. MPa | Eff. oil vol. cm³ | Cap. cm³/min low | Cap. cm³/min high | Air press. Bar | Weight kg |
PP70-2500FP | 50000 | 70 | 2500 | 1150 | 260 | 6.5 | 10.1 |
PP70-2500FP/LS201 | 50012 | 70 | 2500 | 1150 | 260 | 6.5 | 10.8 |
PP70-2500MLD | 50002 | 70 | 2500 | 1150 | 260 | 6.5 | 10.5 |
PP70-2500MRV | 50003 | 70 | 2500 | 1150 | 260 | 6.5 | 9.8 |
PP70-2500RC | 50001 | 70 | 2500 | 1070 | 200 | 6.5 | 10.8 |
PP80-2500FP | 50004 | 80 | 2500 | 760 | 170 | 6 | 10.1 |
PP80-2500MLD | 50006 | 80 | 2500 | 760 | 170 | 6 | 10.5 |
PP80-2500MRV | 50007 | 80 | 2500 | 760 | 170 | 6 | 9.8 |
PP80-2500RC | 50005 | 80 | 2500 | 710 | 130 | 6 | 10.8 |
PP100-2500FP | 50008 | 100 | 2500 | 760 | 100 | 6.5 | 10.8 |
PP100-2500RC | 50009 | 100 | 2500 | 710 | 80 | 6.5 | 11.5 |
Imperial Measurements
Name | Item code | Working press. psi | Eff. oil vol. in³ | Cap. in³/min low | Cap. in³/min high | Air press. psi | Weight lbs |
PP70-2500FP | 50000 | 10000 | 152.6 | 70.2 | 15.9 | 94 | 22.3 |
PP70-2500FP/LS201 | 50012 | 10000 | 152.6 | 70.2 | 15.9 | 94 | 23.8 |
PP70-2500MLD | 50002 | 10000 | 152.6 | 70.2 | 15.9 | 94 | 23.1 |
PP70-2500MRV | 50003 | 10000 | 152.6 | 70.2 | 15.9 | 94 | 21.6 |
PP70-2500RC | 50001 | 10000 | 152.6 | 65.3 | 12.2 | 94 | 23.8 |
PP80-2500FP | 50004 | 11600 | 152.6 | 46.4 | 10.4 | 87 | 22.3 |
PP80-2500MLD | 50006 | 11600 | 152.6 | 46.4 | 10.4 | 87 | 23.1 |
PP80-2500MRV | 50007 | 11600 | 152.6 | 46.4 | 10.4 | 87 | 21.6 |
PP80-2500RC | 50005 | 11600 | 152.6 | 43.3 | 7.9 | 87 | 23.8 |
PP100-2500FP | 50008 | 14500 | 152.6 | 46.4 | 6.1 | 94 | 23.8 |
PP100-2500RC | 50009 | 14500 | 152.6 | 43.3 | 4.9 | 94 | 25.4 |
